CNC Cutting
Cutting Machine 8000mm x 35000mm Oxy-fuel straight (vertical) with 02 sets Oxy-Fuel Torch for vertical/Straight Cutting Station complete with Fully Automatic Cool Jet Pro Cutting Torch
Make: ESAB, Sweden

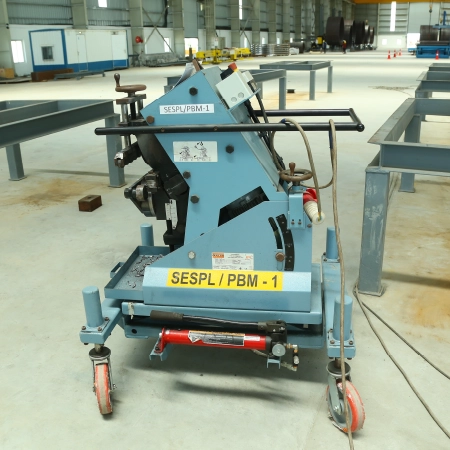

Edge Preparation
KBM-28-100-C Portable Plate Edge Bevelling Machines – 2 Sets
KBM-28U-100- Inverted Portable Plate Edge Bevelling
Machine – 2 sets
Make: Gullco, Canada

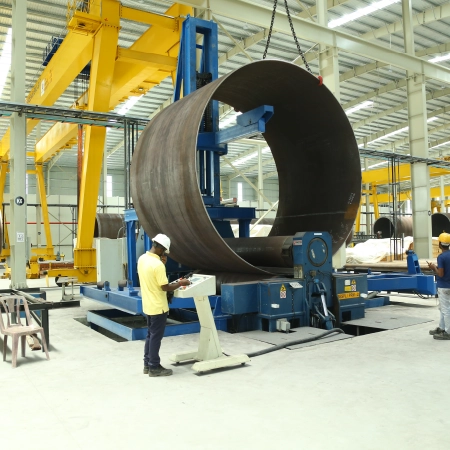

Rolling
MCB3053 WT- DAVI- PROMAU , Model: MCB 3053 , Sl.No- 20540109 Electric – 1No
Make: DAVI, Italy
HAV 3 X 80-53 Variable Geometry Rolling machine – 1No
Make : FACCIN, Italy
LS Welding
COLUMN & BOOM 6 M x 5 M
Height of Boom from Ground 6m suitable for 5m Job Dia.& Boom Length 5m (with 3m Arc Travel); Motorized Trolley
Make: Cu built
SAW Machine: LAF 1251 with Single Wire Head Controller and Pneumatically Operated Flux Recovery Unit
Make: ESAB, Sweden

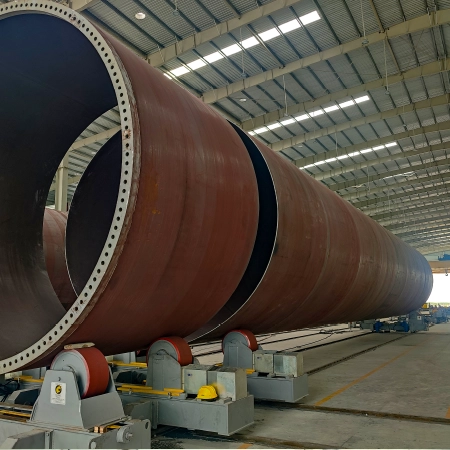

Shell Fitup
Fit up Unit: Hydraulic Fit-Up Idler with Load Carrying Capacity 120 Ton. One Idler consists of Two Independent Rollers along with Power Pack
Rotator: 120 Ton Rotator Drive & Idler Unit Lead Screw Type with Motorized Trolley along with Control Panel and Pendant
Make : Cu built

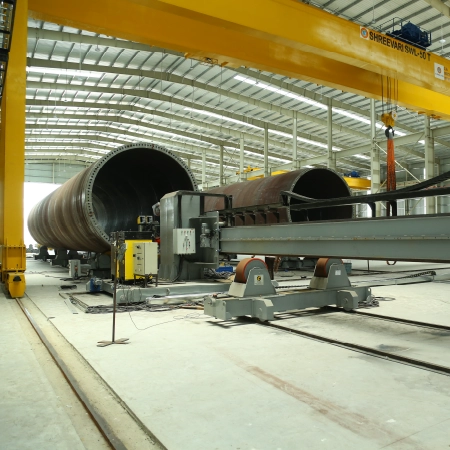

CNC Cutting
COLUMN & BOOM 15Mtr
Telescopic Type Column and Boom 00×150 Motorized Trolley Type
Make: Cu built
SAW Machine: LAF 1251 & TAF 1251
with Tandem Head, Controller and Pneumatically Operated Flux Recovery Unit
Make: ESAB, Sweden
Blasting
Two Booths of size 37 X 7.5 X 7.5 Mtr.(L X W X H). Automatic shots/grit collection (Belt conveyer with bucket elevator system)
4 Gun’s manual blasting.
4 nos. of compressors for blasting operation.

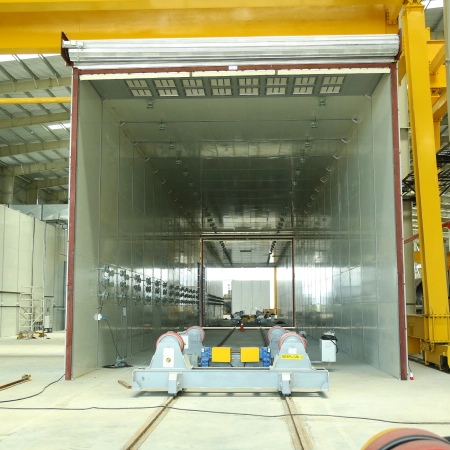

Painting
Primer and MIO Coating Booths
Two Booths – 37 X 7.5 X 7.5 Mtrs (L X W X H). Liquid paint booth with airless painting machine Heating System for humidity control.
Final finish coat booth
Two Booths – 37 X 7.5 X 7.5 Mtrs (L X W X H). Liquid paint booth with airless painting machine Heating System for humidity control.
Handling Capacity
Bay I : 25 Ton EOT cranes – 4 No’s Bay II : 50 Ton Gantry Cranes – 3 No’s Bay III : 50 Ton Gantry Cranes – 4 No’s Bay IV : 25 Ton Gantry Cranes – 2 No’s
